AFRL creates safer-than-steel synthetic winch cable for cargo aircraft

  • Published
  • By Donna Lindner
  • Air Force Research Laboratory

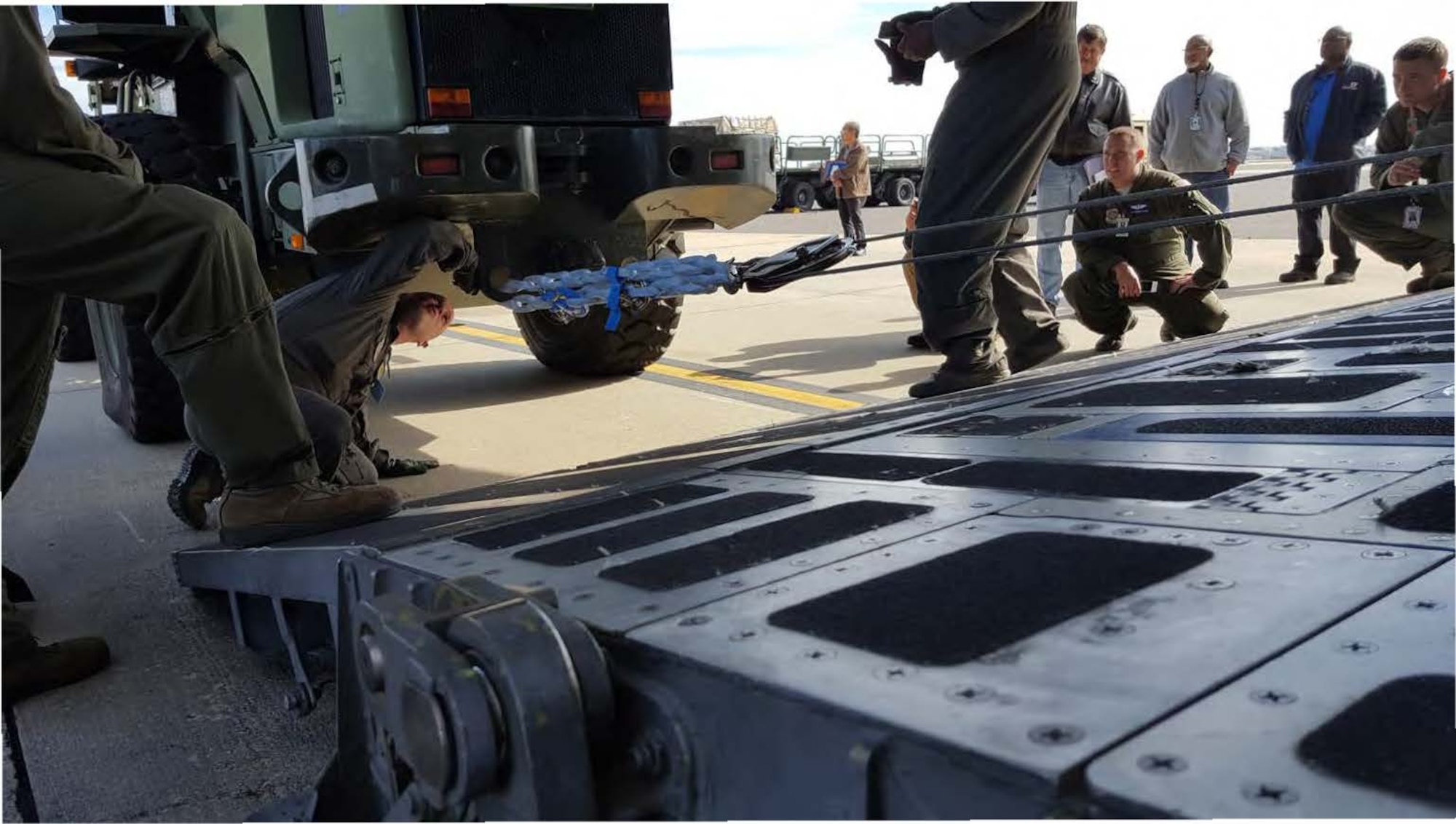

WRIGHT-PATTERSON AIR FORCE BASE, Ohio – The C-17 Globemaster III aircraft fleet currently uses winch cables made of steel to pull pallets, vehicles and other items onto the aircraft from the ground via the aft ramp. This cable can experience dangerous snapback upon breakage, which can injure personnel and damage aircraft.

The Air Force Research Laboratory’s Advanced Power Technology Office is changing this material to one that is lighter and safer.

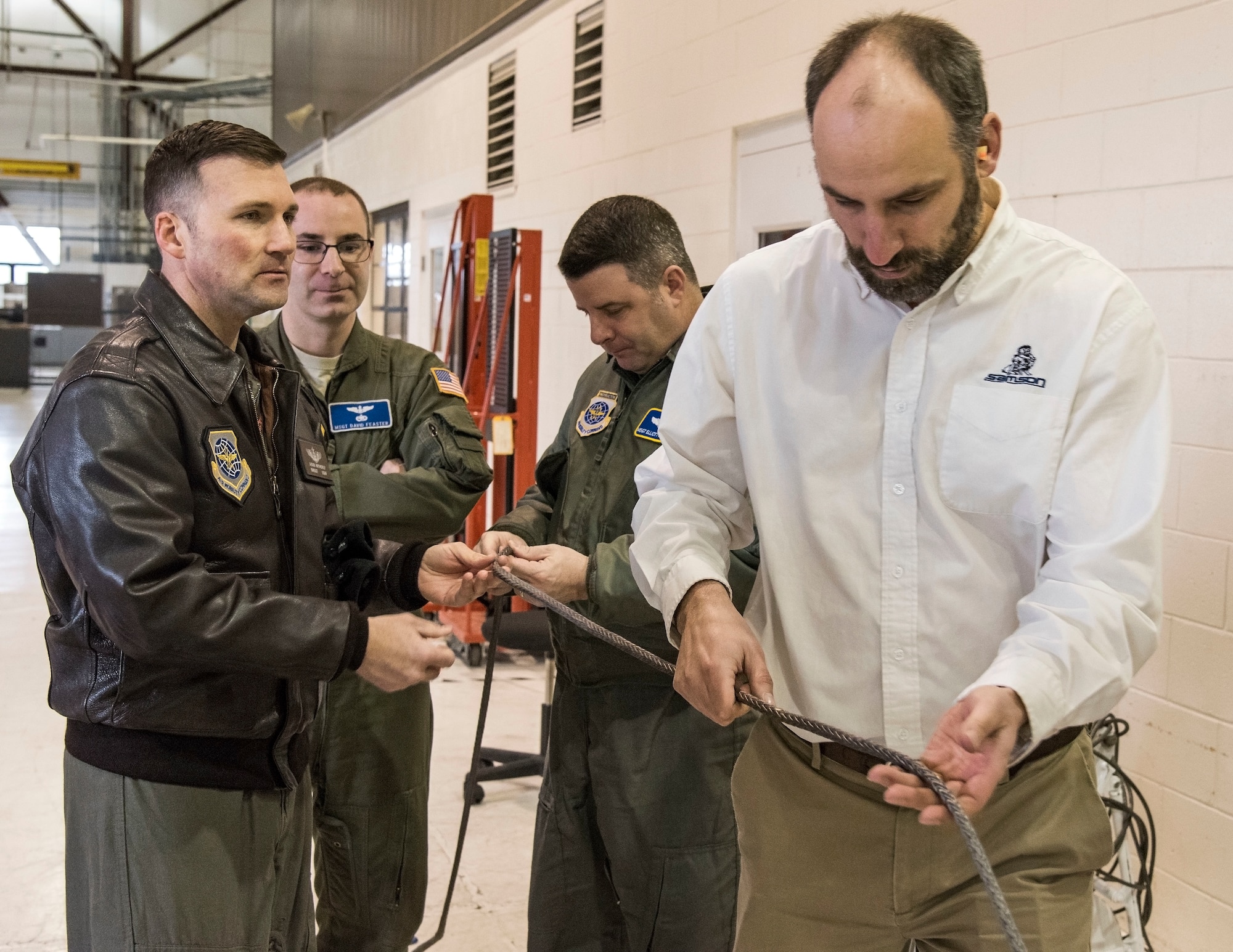

APTO has successfully designed, developed and tested a synthetic winch cable for the aircraft.  The new cable replaces existing cables while being 40% cheaper and significantly lighter. In addition, the synthetic cable does not recoil if it fractures, making it a safer alternative for Airmen on the flightline.​

Measuring 280 feet, the current steel cable weighs in at a hefty 80 pounds compared to the new synthetic cable’s 14 pounds, equating to an 83% lighter cable. Removing excess weight results in less fuel consumption and improved mission capabilities.

“It’s about creating a safer winch cable for the C-17,” said Ed Clark, APTO Office. “Serious injury occurs when a steel cable breaks, eliminating those injuries is imperative.”

“The change from steel to a synthetic material is most noteworthy in the significant weight difference,” said Senior Master Sgt. Jeff Witherly, C-17 evaluator loadmaster, Scott Air Force Base, Illinois. “The cable is simply easier to move, maneuver and manipulate around the cargo compartment. The fact that it does not retain energy when it breaks is a huge safety advantage as it will not whiplash if it were to fail.”

During the first quarter of 2020, six sets of cables will be installed on two aircraft at three different operational bases. The Air Mobility Command and the C-17 Program Office will evaluate them for approval as a suitable substitute.

Samson Rope Company is working with the crew to design the system. They manufacture industry-specific synthetic rope that is engineered to meet various demands.

Upon approval, the fleet will be upgraded with the new synthetic cables and will become an Air Force-approved, commercially available item that can be procured for all C-17 aircraft.
